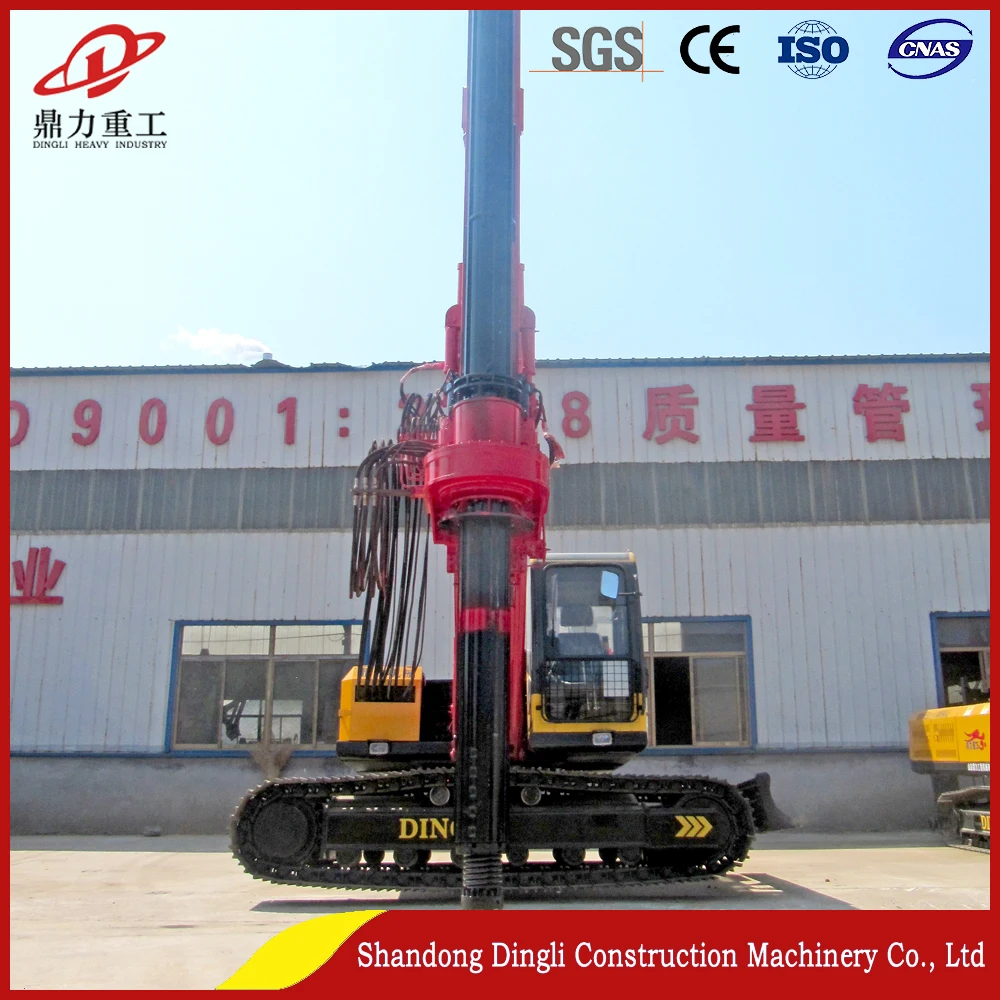

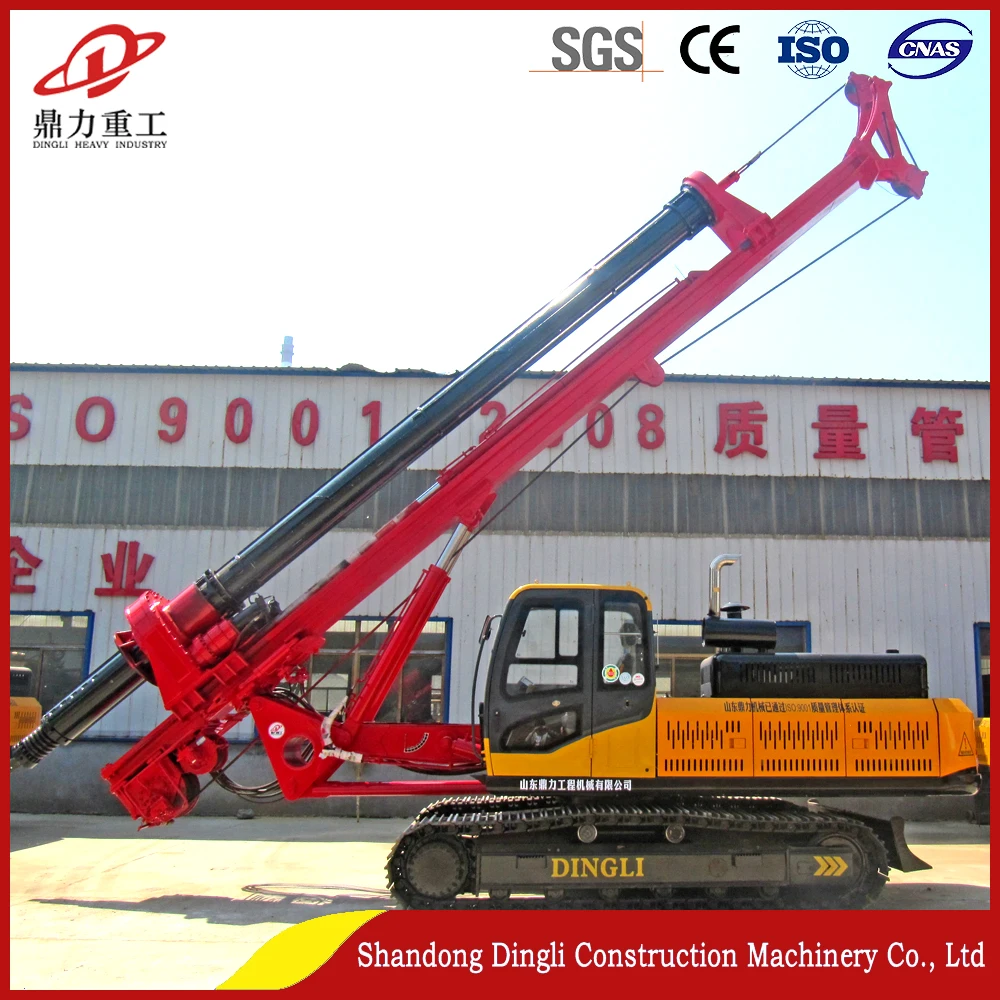

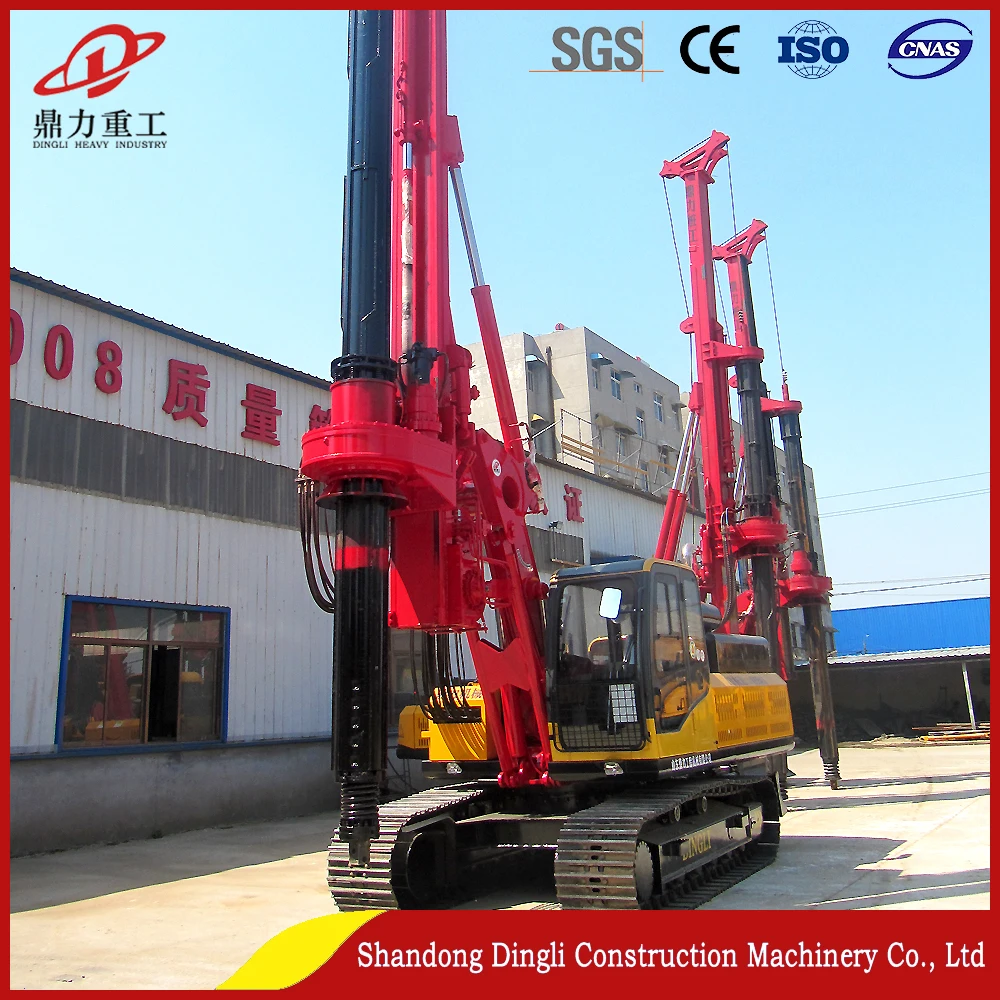

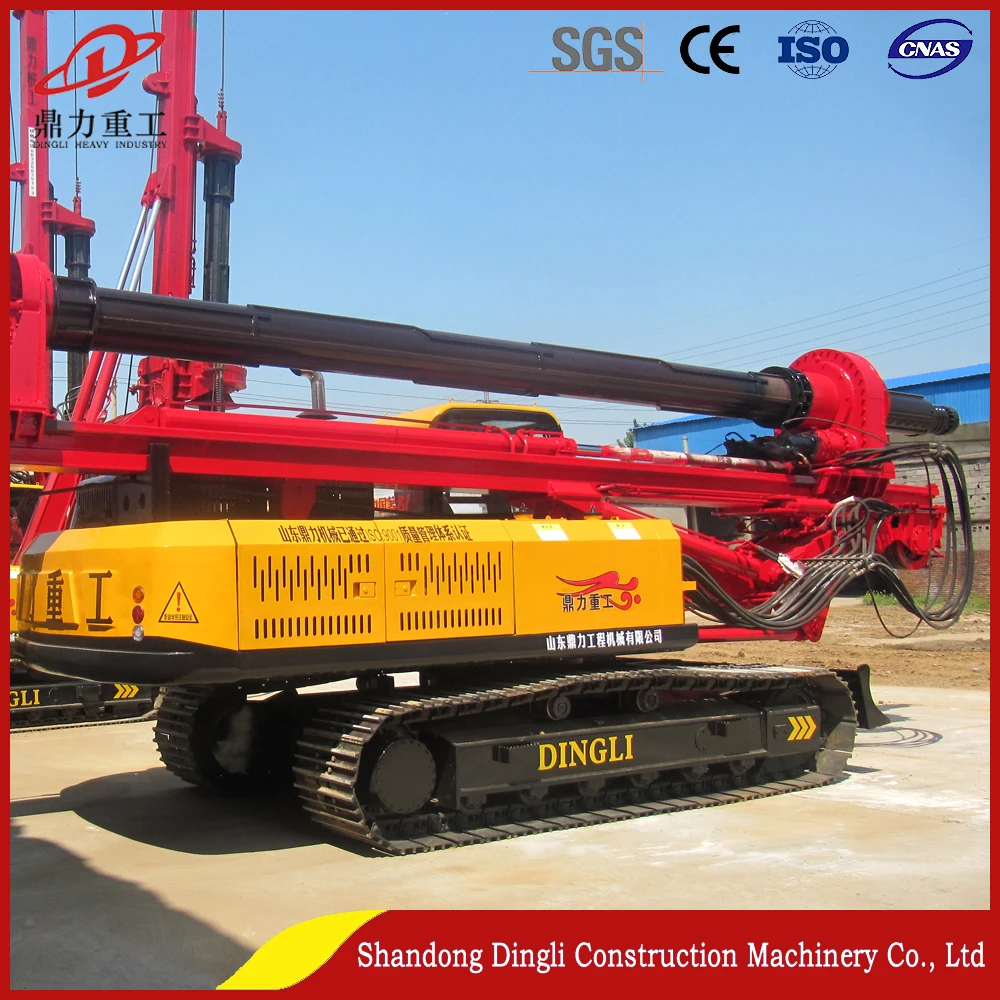

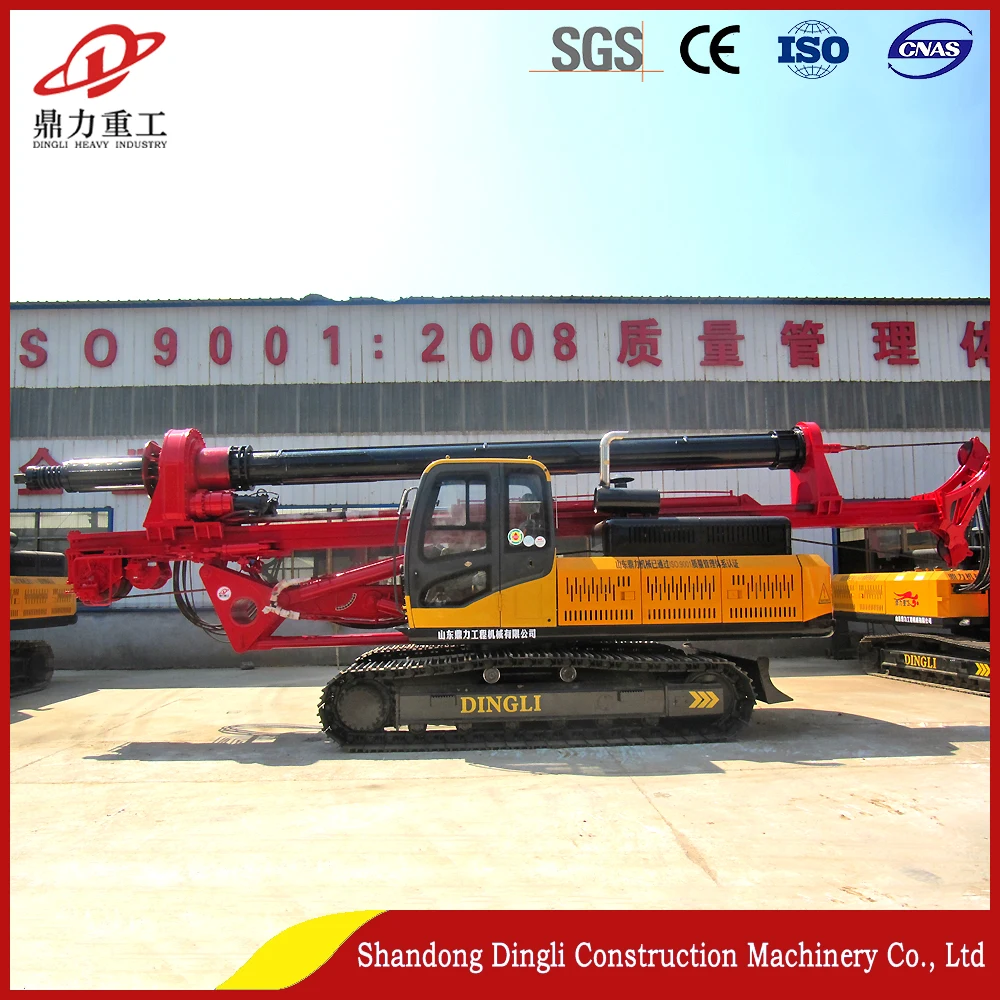

DR-120 mini rotary pile driver can up to 30 meter for sale good price

  • 1 - 4 Sets
    $89,800.00
  • >=5 Sets
    $75,300.00
Model Number:
DR-120
Power(W):
126-151kw
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$82,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Farms, Construction works , Energy & Mining
Local Service Location:
None
Showroom Location:
None
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
dingli
Usage:
building house, Ore, Hydraulic Rotary Drilling Ri
Voltage:
380V
Dimension(L*W*H):
4550*2600*3400mm
Weight:
21-25t
Certification:
ISO9001
Warranty:
1 YEAR
After-sales Service Provided:
Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
Gear
Key Selling Points:
Competitive Price
Drilling depth:
30m
Maximum travel speed of chassis:
4km/h
Maximum travel torque:
45000
Drill diameter:
500-1800mm
Transport status width:
3000
Application:
Hole Drilling
Item:
land drilling machine
Operating principle:
High Frequency Hydraulic Vibratory
Product Certification certification
CE Certified.
Valid from 2018-02-01 until 2023-01-31
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
according to the customer's requirements
Port
Qing dao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description
Products Description
Product Type
DR-120
Chassis length.(mm)
4200
Track width.(mm)
600
Machine weight.(t)
26
Maximum drilling depth.(m)
30
drilling diameter.(mm)
500-1600
Engine brand
Yuchai/Weichai/Cummins(Optional)
Engine rated power.(KW/rpm)
126KW-151KW
Maximum torque of power head.(KN.m)
120
Power head speed.(rpm)
10-50
Maximum working pressure of hydraulic system main pump.(MPa)
30
Maximum working pressure of hydraulic system auxiliary pump.(MPa)
12
Maximum bow rate of the main pump hydraulic system.(L/min)
80*2(Optional)
Maximum bow rate of the auxiliary pump hydraulic system.(L/min)
16
Maximum pressure of the pressurization system.(KN)
100
Maximum lifting force of the pressurization system.(KN)
80
Maximum travel pressure system.(mm)
3000
Maximum lifting force of the main winch.(KN)
150
Maximum pull-up speed of the main winch. (m/min)
50
Maximum lifting force of the auxiliary winch.(KN)
15
Maximum pull-up speed of the auxiliary winch.(m/min)
50
Left and right inclination angle of drilling mast(°)
±5
Forward and backward inclination angle of the drilling mast. (°)
5/90
Maximum driving speed(KM/h)
1.5
Maximum climbing angle.(°)
25
Maximum Driving torque.(KN.m)
40000-45000
Overall width of working state.(mm)
2800
Overall length of transport status.(mm)
11500
Overall width of transport status.(mm)
2800
Overall height of transport status.(mm)
3400
Drill rod type
Machine Lock
Drill rod whether to provide custom
Yes
drill tools
500-1800mm drilling bit、Drilling Barrel、Coring drill、Reaming drilling bit
